Open Baffle

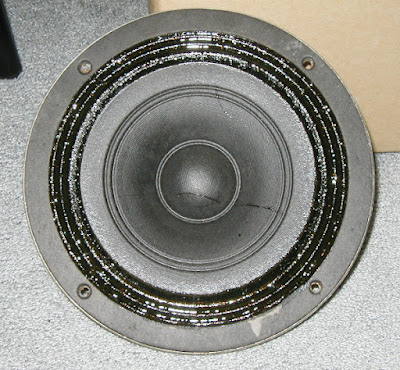

After building my first SE 300B amp in the mid 90s, I embarked on a search for more efficient speakers to replace my Spendor LS3/5A. I had just purchased a pair of Altec 755Cs at an Audiomart Show and was looking for a suitable enclosure for the unit. Fortunately I came across an open baffle article in Stereo Sound "Tube Kingdom", Volume 3, 1996. I don't read Japanese but these magazines (like MJ) have detailed pictures where I get a lot of ideas for projects. The article was a "shootout" of 8" full range and coaxial drivers - Altec/WE755A, Altec 755C and 755E, Altec 409B and 409-8E, JBL LE8T-H, EV Pro-8A, as well as 15" coaxials- Altec 604-8K and JBL 2155H.



The Stereo Sound plan was in metric and used a material similar to a butcher block around 3/4" thick. It was designed to take adapter plates so that an 8" or 15" driver can be mounted on the same baffle. Knowing that such material will cost a lot of money and hard to procure, I decided that the easiest way to build my baffle was to convert the dimensions to inches and make a quick trip to the lumber yard for 3/4" baltic birch plywood pieces cut to size so that I can start listening. Here is my version of the Open Baffle.


This open baffle was part of my Home Brewer Article published in Sound Practices Issue 17.



Around the same time I embarked on this project, my friend Ding acquired a pair of Altec 604-8G and was also looking for a suitable cabinet. I immediately faxed the plan to his office and that same weekend he called stating that it was a success. He still uses the same configuration after trying a couple of bass reflex cabinets through the ensuing years. Likewise a few of my SETUP friends have so far found no reason to experiment further with enclosures.


Ding's Altec 604-8G


I later found the June 1996 Hi-Fi News and record reviews, "Classic Hifi Supplement" issue which reprinted a November 1956 review of the Wharfedale SFB/3 designed by G.A Briggs


Wharfedale SFB3


This baffle has almost exactly the same dimensions as the Stereo Sound version, which also shared the proportion of the original Quad ESL57, another favorite speaker from my PP amp days.


G. A. Briggs prototype


Brigg's approach was to use thinner sheets of plywood "sand-filled" in between for the baffle and utilized a 3-way configuration using 12" and 10" drivers with a 3" cone tweeter mounted on the rear top plate firing upwards.

There must be something behind the dimensions [golden mean, perhaps?] that make it work. Of course one cannot expect ultimate bass extension with an open baffle but the lack of cabinet colorations gives purity to the sound that many will find very appealing. It won't cost much and not too difficult to build so give it a try with your favorite driver.


FAQs about the OB plan
"Form follows function"


1. Materials [acrylic, plexiglass, MDF and etc.] - visitors to this site are already familiar with my adversity towards "dead sounding" synthetic components. Solid wood or edge glue butcher block type material will probably give the best sonic quality. I endorse 3/4" plywood because that is the material I use and very satisfied with the sonic results. Besides it is cheap and if you like what you hear and decide to experiment with your own exotic materials later not much is lost with the initial investment.

2. Driver off set - I have read in various reference materials on audio that off setting the mounting position [slightly off center] of the driver can further reduce cancellation. I have not tried this because in the real world unless your cutting tool is aided by computer and laser devices, it is almost impossible to perfectly cut exactly at center. So I do not worry about it.



Free field response graph

3. Driver mounting too low - common sense dictates that the reason why the baffle was tilted 80 degrees and mounted closer to the floor is to aid bass response. I tried lifting the OB a few inches off the floor and lost a substantial amount of weight in the lower frequency (see more below). Logically if one is to sit 1 meter away from the speakers the apparent soundstage would be a bit low. My listening position is almost 3 meters away and was never bothered by a "low soundstage". A good super tweeter can aid in giving more height if your driver has limited high frequency extension.

how not to...

4. Tall and narrow baffle vs. wide and squat - the table above shows that 35.5" will give a low frequency response sharply falling by 90hz but this is free field - floor mounting provides an additional barrier to the nominal 35.5" width which significantly helps the low frequencies. Turn it around so that it becomes slimmer (35.5" tall x 31.5" width) and hear how bass extension suffers.....keep this in mind before designing a modern looking Magnepan style OB (see above). G.A. Briggs was a fine engineer with good ears that's why he designed his OB to mimic Quad ESL 57 proportions, or was it Peter Walker? I think they were acquainted and exchanged notes on their research and development.


OB built using Philippine Tanguile wood flooring planks
mounting hole is for an Altec 605B Duplex


5. What's the purpose of the 6" x 8" top plate? This may look like an after thought but omit this from the design and you lose overall definition from the bass to the midrange. It serves as a deflector and focuses the sound. The back legs and this top plate serve to further delay or disperse rear sound waves from reaching the front too soon which can result in bass cancellation.




WE/Altec 728B, 755A + 756A

A few drivers I have auditioned:







  • Other 8" full range drivers - Altec 408 BiFlex, 400B, Jensen P8RXP8RL + RP103, Stephens FR80, EV/University SP8B and SP8C [Radax series], Lafayette SK98, Philips/Norelco 9710M
  • 10" - WE/Altec 756
  • 12" - WE/Altec 728B, Altec 601Duplex, 412 and 419A series Bi-Flex, Electro Voice EV12TRXB,Lafayette SK58

RCA 501S1 - 12" co-ax






  • 15" co-ax - Altec 604B, 604-8G, 605, 602 Duplex, 415 and 420 BiFlex.


Altec 605B Duplex

  • Other possibilities include vintage units from Jensen (G610, H222, K210, and etc.), University, Electro Voice and others.
  • You can also check out old paper cone drivers from tube type stereo consoles, and table radios or vintage Japanese drivers that came with compact systems. I'm sure there are many sleepers out there and the possibilities are endless.


Have fun and happy listening!

12 comments:

  1. Great article. After reading it and some other material I bought a pair of EV 12TRXBs. Took me a year (did manage to get one Aristocrat cab for one of the drivers in the interim) but I finally got these open baffles made and have been enjoying them.
    Also, after reading your archive I got the 3rd ed. of Radiotron, Sound Practices archive, and have been reading old issues of Audio from the 1950s, so thanks for helping get me on a good path.
    One note - your drawings don't show haw far in from the edges the stand pieces should go. I went with 2.5".

    ReplyDelete
    Replies
    1. Thanks for pointing that out! In the original plan it was 50mm or roughly 2".

      Happy listening!

      JE

      Delete
    2. Hello,

      A question about the sidepanels: would it affect if I start working with a perfectly square panel (31,5"x31,5") and put the sidepanels at the edge of the panel?

      Delete
    3. Hi Bert,

      By doing that, you are essentially altering the original design. Therefore I cannot predict the results.

      Sorry I cannot be of further help ;(

      JE

      Delete
  2. Hi,
    I'm building these now. Question- what if the top plate extends the full width of the OB (i.e., to the vertical stands)?

    ReplyDelete
    Replies
    1. Sorry I never tried a full length top plate.

      JE

      Delete
  3. Danke für diesen Blog. Die Schallwand empfehle ich immer gerne weiter.
    Sie ist außergewöhnlich und in Deutschland bekannt.
    Liebe Grüße aus " Good old Germany"

    Kaspie
    Kay Spiecker

    ReplyDelete
    Replies
    1. Hi Kaspie,

      I merely "rediscovered" Mr. G.A. Briggs open baffle from reading Stereo Sound. Kudos to him for bringing good sound to music lovers more than half a century later ;)

      JE

      Delete
  4. Very useful article. Did you tried with stuffing rear side of the baffle or/and bottom?

    ReplyDelete
    Replies
    1. I haven't tried damping the back panels but used the OBs on top of a carpet for many years.

      Delete
  5. How did the Radio Shack 40-1354 sound? I still have an unmolested pair somewhere.

    ReplyDelete
  6. The 40-1354 sounded good in the OB just like it did in the small bass reflex cabinet published in the David Weems book.

    ReplyDelete
